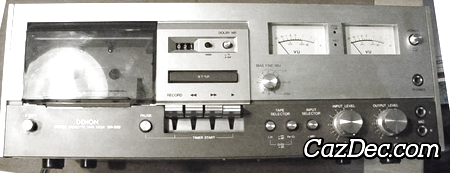

Denon DR-350
Dolby B NR

This Denon DR-350 is a stereo cassette deck with Dolby B noise reduction, it was first sold by Denon in 1977 with a manufacturer suggested retail price of USD $450.

The main features of the Denon DR-350 cassette deck are: 2 heads, mechanical 3 digit tape counter, manual tape type selection and capable of handling normal, chrome and ferro-chrome tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Denon DR-350 cassette deck are analog needle VU reading meters with peak indicator for easy adjustment of optimum recording level. Mechanical transport controls for reliable Denon DR-350 transport function selection.

The Dolby-B system reduces tape hiss on tapes recorded on the Denon DR-350 by as much as 10 dB at the highest frequencies.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied.

Compact Cassette

Historic events

1977 Tandy Radio Shack released its version of a personal home computer called the TRS-80.

Features of Denon DR-350

Calibration
Calibration
Bias Fine Tune
Connectors
Connectivity
2 Mono Microphone Inputs Headphones
Display
Display
3-Digıt Mechanical Counter Analog Needle Meters
Cassette Exterior
Exterior
Silver Finish Orientation Left Front Loading
Compact Cassette
General
Stereo
Head Configuration
Head Configuration
2 Head Desiǥn 4 Track / 2 Channel
Indicators
Indicators
Record Peak Indicator
Noise Resuction
Noise Reduction
Dolby-B Noise Reduction
Controls
Operation
Timer Recording/Playback Line / Mic Input Select Mechanical Transport Control
Power
Power Requirements
Alternating Current
Preamplifier
Preamplifier
Individual Input Level Controls Output-Level Control
Tape Speed
Speed
1⅞ ips - 4.76 cm/s
Tape
Tape
Manual Tape Type Selection Ferro-Chrome Tape Capabilıty Normal Tape Capabilıty Chrome Tape Capabilıty
Transport
Transport
Mechanical Tape Loading Auto Stop Sìngle Capsŧan Transport Belt Drive (Capsŧan)
