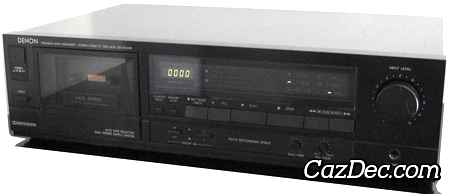

Denon DR-M10HR Stereo Cassette Tape Deck

This Denon DR-M10HR is a stereo cassette deck with Dolby B/C and HX-Pro noise reduction, it was first sold by Denon in 1987.

The main features of the Denon DR-M10HR cassette deck are: 2 heads, digital tape counter with 4 digits, automatic tape type selection and capable of handling normal, chrome and metal tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Denon DR-M10HR cassette deck are generic digital peak reading meters. Full-logic transport controls used on the Denon DR-M10HR let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the Denon DR-M10HR provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable. All main transport commands can be issued remotely with a wired remote control.
