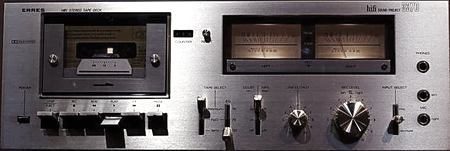

Erres 3370 HiFi Stereo Tape Deck

This Erres 3370 is a stereo cassette deck with Dolby B noise reduction, it was first sold by Erres in 1980.

The main features of the Erres 3370 cassette deck are: 2 heads, mechanical 3 digit tape counter, tape type selection and capable of handling normal, chrome and ferro-chrome tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Erres 3370 cassette deck are analog needle VU reading meters with peak indicator for easy adjustment of optimum recording level. Mechanical transport controls for reliable Erres 3370 transport function selection.

The Dolby-B system reduces tape hiss on tapes recorded on the Erres 3370 by as much as 10 dB at the highest frequencies. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the 3370 filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied.
