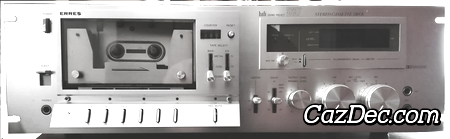

Erres SR3637
Dolby B NR Full Logic Metal Tape

This Erres SR3637 is a stereo cassette deck with Dolby B noise reduction, it was first sold by Erres in 1980.

The main features of the Erres SR3637 cassette deck are: 2 heads, mechanical 3 digit tape counter, manual tape type selection and capable of handling normal, chrome and metal tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Erres SR3637 cassette deck are generic digital peak reading meters. Full-logic transport controls used on the Erres SR3637 let it respond to the slightest finger contact for fast and effortless transport function selection.

The Dolby-B system reduces tape hiss on tapes recorded on the Erres SR3637 by as much as 10 dB at the highest frequencies. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the SR3637 filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

Compact Cassette
  • Fluorescent Peak VU Meter
  • HiFi Sound Project

Features of Erres SR3637

Calibration
Calibration
Bias Fine Tune
Connectors
Connectivity
2 Mono Microphone Inputs AC Power Cord / Plug Headphones RCA Input/Output Connectors
Display
Display
3-Digıt Mechanical Counter Digital Peak-Reading Meters Meters Peak / VU Switchable
Electronics
Electronics
Record Protection
Cassette Exterior
Exterior
Front Loading Orientation Left Silver Finish
Compact Cassette
General
Stereo
Head Configuration
Head Configuration
4 Track / 2 Channel 2 Head Desiǥn
Indicators
Indicators
Dolby B Metal Tape
Noise Resuction
Noise Reduction
Dolby-B Noise Reduction MPX Filter
Controls
Operation
Full Logic Transport Control Record Mute Timer Recording/Playback
Power
Power Requirements
Alternating Current
Preamplifier
Preamplifier
Individual Input Level Controls Output-Level Control Headphone Volume Control Microphone Level Adjust (Left/Right)
Tape Speed
Speed
1⅞ ips - 4.76 cm/s
Tape
Tape
Metal Tape Capabilıty 2-Position Equalization Selector Normal Tape Capabilıty Chrome Tape Capabilıty Manual Tape Type Selection
Transport
Transport
Auto Shutoff Belt Drive (Capsŧan) Mechanical Tape Loading Sìngle Capsŧan Transport
