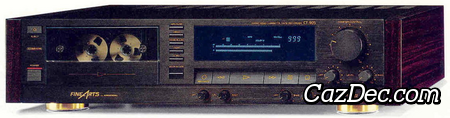

Grundig CT-905 Three Head Cassette Tape Recorder

The Grundig CT-905 is a stereo cassette deck with Dolby B/C and HX-Pro noise reduction, it was introduced by Grundig in 1990 and discontinued 2 years later in 1992.

The main features of the Grundig CT-905 cassette deck are: 3 heads and off-tape monitoring, electronic tape counter with 3 digits, automatic tape type selection with support for normal, chrome and metal tapes, dual capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Grundig CT-905 cassette deck are generic digital peak reading meters. Full-logic transport controls used on the Grundig CT-905 let it respond to the slightest finger contact for fast and effortless transport function selection.

To ensure the best response from the wide variety of tapes available adjustment of, sensitivity, to optimum levels can be performed prior to recording.

Dolby C-type used in the Grundig CT-905 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original. To further maintain recording accuracy, the CT-905 incorporates a switchable multiplex filter. When you record FM stereo broadcasts, the MPX filter of the CT-905 can be swiched on to prevent the standard 19kHz FM pilot signal from interfering with the noise reduction system.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
