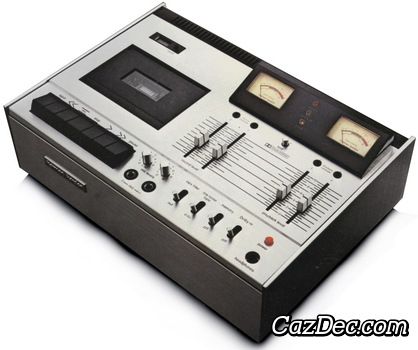

Harman Kardon HK2000 Cassette Deck

The Harman Kardon HK2000 is a stereo cassette deck with Dolby B noise reduction, it was introduced by Harman Kardon in 1977 with a manufacturer suggested retail price of USD $430 and discontinued 2 years later in 1979.

The main features of the Harman Kardon HK2000 cassette deck are: 2 heads, analog 3 digit tape counter, manual tape type selection with support for normal and chrome tapes, belt driven single-capstan transport.

Typical of this deck is the 70's top loading layout with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Harman Kardon HK2000 cassette deck are analog needle VU reading meters. Mechanical transport controls for reliable Harman Kardon HK2000 transport function selection.

To ensure the best response from the wide variety of tapes available adjustment of, sensitivity, to optimum levels can be performed prior to recording.

The Dolby-B system reduces tape hiss on tapes recorded on the Harman Kardon HK2000 by as much as 10 dB at the highest frequencies. A Subsonic filter is provided in the Harman Kardon HK2000 to prevent infrasonic signals generated when playing a warped record. These signals can upset the Dolby system and prevening it from functioning properly. To further maintain recording accuracy, the HK2000 incorporates a switchable multiplex filter. When you record FM stereo broadcasts, the MPX filter of the HK2000 can be swiched on to prevent the standard 19kHz FM pilot signal from interfering with the noise reduction system.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied.
