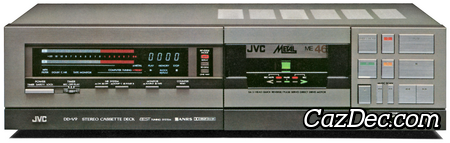

JVC DD-V9 Stereo Cassette Deck

This JVC DD-V9 is a auto-reverse stereo cassette deck with Dolby B and C and JVC's ANRS noise reduction, it was first sold by JVC in 1983 with a list price of USD $800.

The main features of the JVC DD-V9 cassette deck are: 3 discrete heads and off-tape monitoring, digital tape counter with 4 digits, automatic tape type selection and capable of handling normal, chrome and metal tapes, dual capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the right side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the JVC DD-V9 cassette deck are generic digital peak reading meters with multi-color indication to provide visual saturation level of tape and peak hold for easy adjustment of optimum recording level. Full-logic transport controls used on the JVC DD-V9 let it respond to the slightest finger contact for fast and effortless transport function selection.

To ensure the best response from the wide variety of tapes available adjustment of, bias, equalization and sensitivity, to optimum levels can be performed prior to recording.

With ANRS noise reduction used in the DD-V9 the signals of low level are compressed in the recording process and expanded in a complementary way during playback in order to reduce noise without altering the tonal quality of the original sound. In this Automatic Noise-Reduction System's process, the hissing noise inherent in tape recording in the region of 5 kHz, is reduced by approximately 10 dB. Dolby C-type used in the JVC DD-V9 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the DD-V9 filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable. All main transport commands can be issued remotely with a wired remote control.

• SA Head
• FL Dot Matrix Peak-Reading Meter
• Pulse Servo Direct Drive Motor
• BEST Tuning System (Bias Equalization Sensitivity)
• Quick Reverse
• ANRS (Automatic Noise Reduction System)
