JVC KD-X1BK
ANRS Noise Reduction Dolby B NR Soft Touch Metal Tape

This JVC KD-X1 is a stereo cassette deck with Dolby B and JVC's ANRS noise reduction, it was first sold by JVC in 1985.

The main features of the JVC KD-X1 cassette deck are: 2 heads, mechanical 3 digit tape counter, manual tape type selection and capable of handling normal, chrome and metal tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the right side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the JVC KD-X1 cassette deck are generic digital peak reading meters. Soft-touch controls for fast and easy transport function selection of the JVC KD-X1 cassette deck.

With ANRS noise reduction used in the KD-X1 the signals of low level are compressed in the recording process and expanded in a complementary way during playback in order to reduce noise without altering the tonal quality of the original sound. In this Automatic Noise-Reduction System's process, the hissing noise inherent in tape recording in the region of 5 kHz, is reduced by approximately 10 dB. The Dolby-B system reduces tape hiss on tapes recorded on the JVC KD-X1 by as much as 10 dB at the highest frequencies.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

Compact Cassette
  • Soft Touch Operation
  • Metal Tape Compatible
  • ANRS (Automatic Noise Reduction System)
  • Logic Control System

Historic events

1985 Sony and Philips produced the standard for Compact Disc Read Only Memory (CD-ROM) computer discs that would use the same laser technology as the audio CD.

Features of JVC KD-X1

Connectors
Connectivity
2 Mono Microphone Inputs RCA Input/Output Connectors
Display
Display
3-Digıt Mechanical Counter Digital Peak-Reading Meters
Cassette Exterior
Exterior
Orientation Right Black Finish Front Loading
Compact Cassette
General
Stereo
Head Configuration
Head Configuration
2 Head Desiǥn 4 Track / 2 Channel
Indicators
Indicators
Record
Noise Resuction
Noise Reduction
ANRS Noise Reduction Dolby-B Noise Reduction
Controls
Operation
Soft Touch Transport Control
Preamplifier
Preamplifier
Individual Input Level Controls
Tape Speed
Speed
1⅞ ips - 4.76 cm/s
Tape
Tape
Normal Tape Capabilıty Manual Tape Type Selection Chrome Tape Capabilıty Metal Tape Capabilıty
Transport
Transport
Auto Shutoff Sìngle Capsŧan Transport Belt Drive (Capsŧan) Mechanical Tape Loading

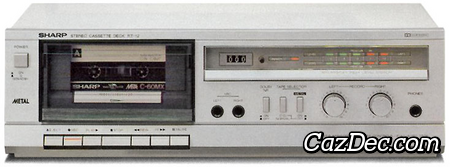

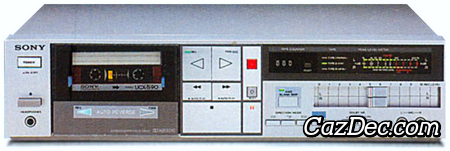

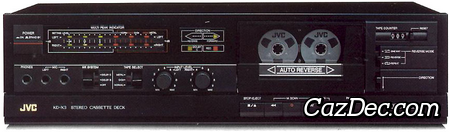

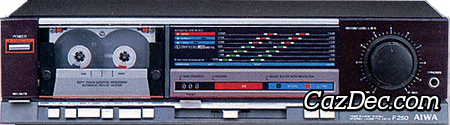

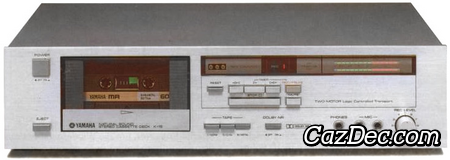

Similar to JVC KD-X1 from the period 1985
