Kenwood CT-203
Dolby B NR Dolby C logo Dolby HXPro Auto Reverse Full Logic Metal Tape

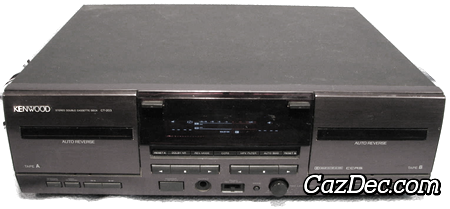

This Kenwood CT-203 is a auto-reverse stereo double cassette deck with Dolby B/C and HX-Pro noise reduction.

The main features of the Kenwood CT-203 double cassette deck are:, digital tape counter with 4 digits, tape type selection and capable of handling normal, chrome and metal tapes.

Typical front loading double cassette deck with the cassette compartiment located on both sides of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Kenwood CT-203 double cassette deck are generic digital peak reading meters. Full-logic transport controls used on the Kenwood CT-203 let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the Kenwood CT-203 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original.

Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

Compact Cassette

Features of Kenwood CT-203

Connectors
Connectivity
AC Power Cord / Plug RCA Input/Output Connectors
Display
Display
4-Digıt Digital Counter Digital Peak-Reading Meters
Cassette Exterior
Exterior
Orientation Left / Right Black Finish Front Loading
Compact Cassette
General
Stereo
Head Configuration
Head Configuration
4 Track / 2 Channel
Noise Resuction
Noise Reduction
Dolby-B Noise Reduction Dolby-C Noise Reduction Dolby HX Pro®
Controls
Operation
Full Logic Transport Control
Power
Power Requirements
Alternating Current
Tape Speed
Speed
1⅞ ips - 4.76 cm/s
Tape
Tape
Normal Tape Capabilıty Chrome Tape Capabilıty Metal Tape Capabilıty
Transport
Transport
Auto Shutoff Belt Drive (Capsŧan) Mechanical Tape Loading Auto Reverse

Similar to Kenwood CT-203 from the period after 1962(1984)
