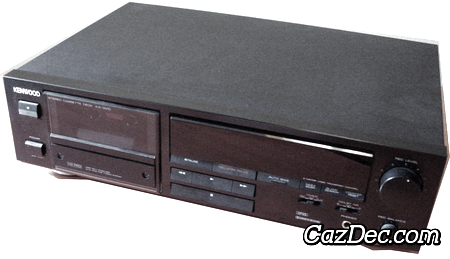

Kenwood KX-3010 Stereo Cassette Deck

This Kenwood KX-3010 is a stereo cassette deck with Dolby B/C and HX-Pro noise reduction, it was first sold by Kenwood in 1989.

The main features of the Kenwood KX-3010 cassette deck are: 2 heads, tape type selection and capable of handling normal, chrome and metal tapes, belt driven single-capstan transport.

Typical front loading cassette deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Full-logic transport controls used on the Kenwood KX-3010 let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the Kenwood KX-3010 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the KX-3010 filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
