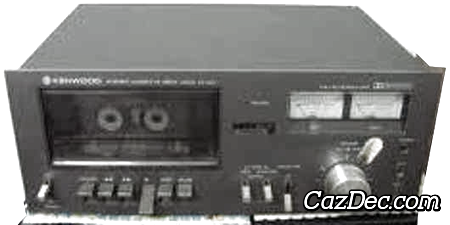

Kenwood KX-503 Stereo Cassette Deck
The Kenwood KX-503 is a stereo cassette deck with Dolby B noise reduction.
The main features of the Kenwood KX-503 cassette deck are: 2 heads, analog 3 digit tape counter, manual tape type selection with support for normal and chrome tapes, belt driven single-capstan transport.
Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.
Level meters used on the Kenwood KX-503 cassette deck are analog needle VU reading meters. Mechanical transport controls for reliable Kenwood KX-503 transport function selection.
The Dolby-B system reduces tape hiss on tapes recorded on the Kenwood KX-503 by as much as 10 dB at the highest frequencies.
To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied.
- Full Auto Shut Off
Features of Kenwood KX-503
2 Mono Microphone Inputs
Headphones
3-Digıt Mechanical Counter
Analog Needle Meters
Orientation Left
Black Finish
Front Loading
Stereo
2 Head Desiǥn
4 Track / 2 Channel
Record
Dolby-B Noise Reduction
Mechanical Transport Control
Alternating Current
1⅞ ips - 4.76 cm/s
Normal Tape Capabilıty
Manual Tape Type Selection
Chrome Tape Capabilıty
Sìngle Capsŧan Transport
Belt Drive (Capsŧan)
Mechanical Tape Loading
Auto Stop
Similar to Kenwood KX-503 from the period after 1962(1984)
