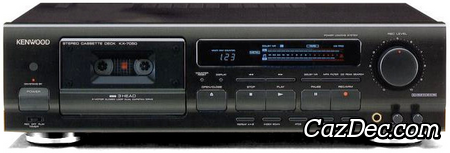

Kenwood KX-7050 Cassette Deck

This Kenwood KX-7050 is a stereo cassette deck with Dolby B/C and HX-Pro noise reduction, it was first sold by Kenwood in 1993 with a manufacturer suggested retail price of USD $340.

The main features of the Kenwood KX-7050 cassette deck are: 3 heads and off-tape monitoring, digital linear tape counter with 3 digits, automatic tape type selection and capable of handling normal, chrome and metal tapes, dual capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape loading/unloading is operated motorized and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Kenwood KX-7050 cassette deck are generic digital peak reading meters.

To ensure the best response from the wide variety of tapes available adjustment of, bias and sensitivity, to optimum levels can be performed prior to recording.

Dolby C-type used in the Kenwood KX-7050 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the KX-7050 filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. All main transport commands can be issued remotely with a wireless remote control.
