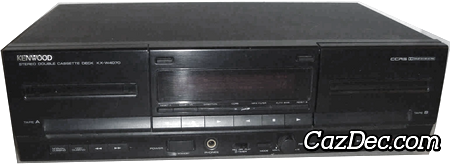

Kenwood KX-W4070 Stereo Double Cassette Deck

The Kenwood KX-W4070 is a auto-reverse stereo double cassette deck with Dolby B/C and HX-Pro noise reduction, it was introduced by Kenwood in 1995 and discontinued a year later.

The main features of the Kenwood KX-W4070 double cassette deck are: 2 heads, electronic tape counter with 4 digits, automatic tape type selection with support for normal, chrome and metal tapes, belt driven auto reverse transport.

Typical front loading double cassette deck with the cassette compartiment located on both sides of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Kenwood KX-W4070 double cassette deck are generic digital peak reading meters. Full-logic transport controls used on the Kenwood KX-W4070 let it respond to the slightest finger contact for fast and effortless transport function selection. 9,5 cm/s faster recording/playback speed used in the KX-W4070 offers extended frequency response, increased dynamic range and transient response. KX-W4070.

To ensure the best response from the wide variety of tapes available adjustment of, bias, to optimum levels can be performed prior to recording.

Dolby C-type used in the Kenwood KX-W4070 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original. To further maintain recording accuracy, the KX-W4070 incorporates a switchable multiplex filter. When you record FM stereo broadcasts, the MPX filter of the KX-W4070 can be swiched on to prevent the standard 19kHz FM pilot signal from interfering with the noise reduction system.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
