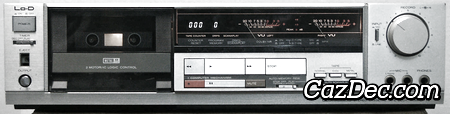

Lo-D D-77 Stereo Cassette Tape Deck

The Lo-D D-77 is a stereo cassette deck with Dolby B and C noise reduction, it was introduced by Lo-D in 1980 and discontinued a year later.

The main features of the Lo-D D-77 cassette deck are: 2 heads, electronic tape counter with 3 digits and memory stop, manual tape type selection with support for normal, chrome and metal tapes.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Lo-D D-77 cassette deck are analog needle VU reading meters. Full-logic transport controls used on the Lo-D D-77 let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the Lo-D D-77 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. To further maintain recording accuracy, the D-77 incorporates a switchable multiplex filter. When you record FM stereo broadcasts, the MPX filter of the D-77 can be swiched on to prevent the standard 19kHz FM pilot signal from interfering with the noise reduction system.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable. All main transport commands can be issued remotely with a wired remote control.
