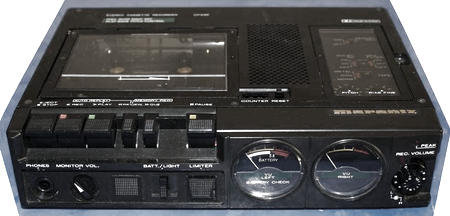

Marantz CP-230 Stereo Cassette Recorder

The Marantz CP-230 is a stereo cassette deck with Dolby B noise reduction, it was introduced by Marantz in 1985.

The main features of the Marantz CP-230 cassette deck are: 2 heads, analog 3 digit tape counter, manual tape type selection with support for normal, chrome and metal tapes, belt driven single-capstan transport.

Typical of this deck is the 70's top loading layout with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Marantz CP-230 cassette deck are analog needle VU reading meters. Mechanical transport controls for reliable Marantz CP-230 transport function selection. Playback speed may be adjusted with pitch control. Cue and review can be used to easily and quickly locate the beginning of a passage.

The Dolby-B system reduces tape hiss on tapes recorded on the Marantz CP-230 by as much as 10 dB at the highest frequencies. To further maintain recording accuracy, the CP-230 incorporates a switchable multiplex filter. When you record FM stereo broadcasts, the MPX filter of the CP-230 can be swiched on to prevent the standard 19kHz FM pilot signal from interfering with the noise reduction system.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

• Full Auto Shut Off
• Play Back Pitch Control
