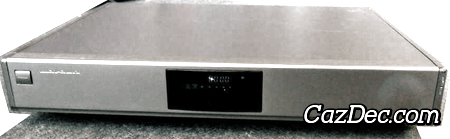

Marantz SD2020 Cassette Deck

This Marantz SD2020 is a auto-reverse stereo cassette deck with Dolby B/C and HX-Pro noise reduction, it was first sold by Marantz in 1999 with a recommended retail price of USD $300.

The main features of the Marantz SD2020 cassette deck are: 2 heads, mechanical 3 digit tape counter, tape type selection and capable of handling normal, chrome and metal tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck.

Dolby C-type used in the Marantz SD2020 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
