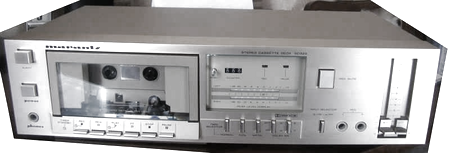

Marantz SD320 Stereo Cassette Deck
This Marantz SD320 is a stereo cassette deck with Dolby B and C noise reduction, it was first sold by Marantz in 1982 with a manufacturer suggested retail price of USD $250.
The main features of the Marantz SD320 cassette deck are: 2 heads, mechanical 3 digit tape counter, manual tape type selection and capable of handling normal, chrome and metal tapes, belt driven single-capstan transport.
Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.
Level meters used on the Marantz SD320 cassette deck are generic digital peak reading meters. Soft-touch controls for fast and easy transport function selection of the Marantz SD320 cassette deck.
Dolby C-type used in the Marantz SD320 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type.
To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
- Peak Level Display
- Super Hard Metal Alloy Head
- Soft Touch Control Mechanism
Historic events
Features of Marantz SD320
2 Mono Microphone Inputs
AC Power Connector (2-Pin)
RCA Input/Output Connectors
Headphones
3-Digıt Mechanical Counter
Digital Peak-Reading Meters
Record Protection
Silver Finish
Orientation Left
Front Loading
Stereo
2 Head Desiǥn
4 Track / 2 Channel
Record
Pause
Dolby-B Noise Reduction
Dolby-C Noise Reduction
Timer Recording/Playback
Line / Mic Input Select
Soft Touch Transport Control
Record Mute
Alternating Current
Individual Input Level Controls
Voltage Switchable (Rear)
1⅞ ips - 4.76 cm/s
Manual Tape Type Selection
Normal Tape Capabilıty
Chrome Tape Capabilıty
Metal Tape Capabilıty
Auto Shutoff
Mechanical Tape Loading
Sìngle Capsŧan Transport
Belt Drive (Capsŧan)
Similar to Marantz SD320 from the period 1982
