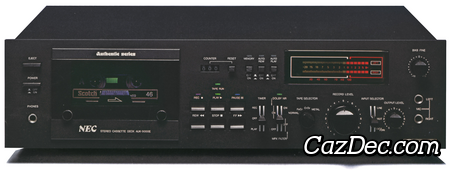

NEC AUK-9000E Stereo Cassette Deck

This NEC AUK-9000E is a stereo cassette deck with Dolby B noise reduction, it was first sold by NEC in 1987.

The main features of the NEC AUK-9000E cassette deck are: 2 heads, mechanical 3 digit tape counter and memory stop, manual tape type selection and capable of handling normal, chrome, ferro-chrome and metal tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the NEC AUK-9000E cassette deck are generic digital peak reading meters with peak hold for easy adjustment of optimum recording level. Full-logic transport controls used on the NEC AUK-9000E let it respond to the slightest finger contact for fast and effortless transport function selection.

The Dolby-B system reduces tape hiss on tapes recorded on the NEC AUK-9000E by as much as 10 dB at the highest frequencies. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the AUK-9000E filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a cable and recording from a source by a cable.
