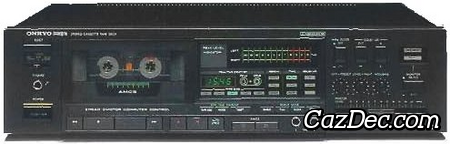

Onkyo TA-2500 Stereo Cassette Tape Deck

This Onkyo TA-2500 is a stereo cassette deck with Dolby B and C noise reduction, it was first sold by Onkyo in 1984 with a manufacturer suggested retail price of USD $400 and discontinued a year later.

The main features of the Onkyo TA-2500 cassette deck are: 3 heads and off-tape monitoring, digital linear tape counter with 4 digits, automatic tape type selection and capable of handling normal, chrome and metal tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Onkyo TA-2500 cassette deck are generic digital peak reading meters. Full-logic transport controls used on the Onkyo TA-2500 let it respond to the slightest finger contact for fast and effortless transport function selection.

To ensure the best response from the wide variety of tapes available adjustment of, bias, to optimum levels can be performed prior to recording.

Dolby C-type used in the Onkyo TA-2500 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the TA-2500 filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable. All main transport commands can be issued remotely with a wired remote control.

• 3 Head
• 3 Motor Computer Control
• Accubias
• Integra
• Peak Level Indicator
• AMCS (Automatic Music Control System)
