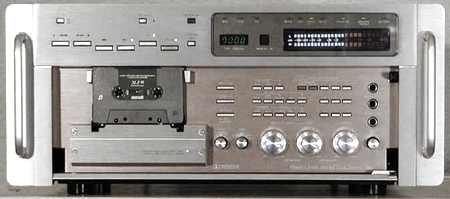

Phase Linear Model 7000 Series Two MicroScan Cassette Deck

This Phase Linear Model 7000 Series Two is a stereo cassette deck with Dolby B noise reduction, it was first sold by Phase Linear in 1979 with a manufacturer suggested retail price of USD $1,350 and discontinued 4 years later in 1983.

The main features of the Phase Linear Model 7000 Series Two cassette deck are: 3 heads and off-tape monitoring, digital tape counter with 4 digits and memory stop, manual tape type selection and capable of handling normal, chrome, ferro-chrome and metal tapes, dual capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed directly over the head block. Additionally the heads can be easilly accessed for cleaning.

Level meters used on the Phase Linear Model 7000 Series Two cassette deck are generic digital peak reading meters with multi-color indication to provide visual saturation level of tape and peak hold for easy adjustment of optimum recording level. Playback speed may be adjusted with pitch control.

To ensure the best response from the wide variety of tapes available adjustment of, bias, equalization and sensitivity, to optimum levels can be performed prior to recording.

The Dolby-B system reduces tape hiss on tapes recorded on the Phase Linear Model 7000 Series Two by as much as 10 dB at the highest frequencies. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the Model 7000 Series Two filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
