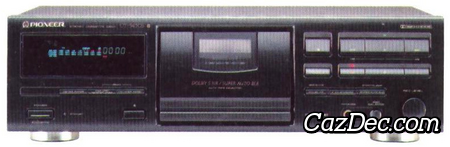

Pioneer CT-S430S Stereo Cassette Deck

The Pioneer CT-S430S is a stereo cassette deck with Dolby B/C/S and HX-Pro noise reduction, it was introduced by Pioneer in 1994.

The main features of the Pioneer CT-S430S cassette deck are: 2 heads, electronic linear tape counter with 4 digits, automatic tape type selection with support for normal, chrome and metal tapes, single capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the center of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Pioneer CT-S430S cassette deck are generic digital peak reading meters. Full-logic transport controls used on the Pioneer CT-S430S let it respond to the slightest finger contact for fast and effortless transport function selection.

To ensure the best response from the wide variety of tapes available adjustment of, bias, equalization and sensitivity, to optimum levels can be performed prior to recording.

Dolby S-type noise reduction gives cleaner transient response, provides lower noise levels, both at low and high frequencies, and allows higher signal levels to be recorded safely on the Pioneer CT-S430S. Dolby S-type noise reduction provides 24 dB of high frequency noise reduction plus an additional 10 dB of low frequency noise reduction. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
