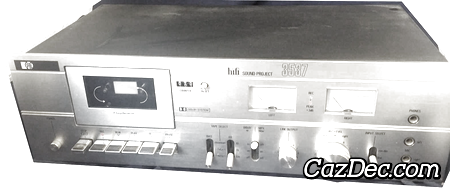

Pye 3537 Stereo Cassette Deck

The Pye 3537 is a stereo cassette deck with Dolby B noise reduction.

The main features of the Pye 3537 cassette deck are: 2 heads, analog 3 digit tape counter, manual tape type selection with support for normal, chrome and ferro-chrome tapes with additional manual equalization selection, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Pye 3537 cassette deck are analog needle VU reading meters with peak indicator for easy adjustment of optimum recording level. Mechanical transport controls for reliable Pye 3537 transport function selection.

The Dolby-B system reduces tape hiss on tapes recorded on the Pye 3537 by as much as 10 dB at the highest frequencies. To further maintain recording accuracy, the 3537 incorporates a switchable multiplex filter. When you record FM stereo broadcasts, the MPX filter of the 3537 can be swiched on to prevent the standard 19kHz FM pilot signal from interfering with the noise reduction system.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
