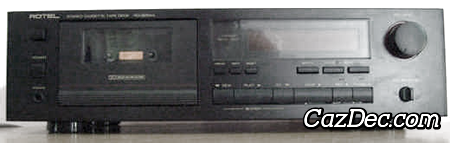

Rotel RD-955AX Stereo Cassette Tape Deck

The Rotel RD-955AX is a stereo cassette deck with Dolby B/C and HX-Pro noise reduction, it was introduced by Rotel in 1992 with a recommended retail price of USD $350 and discontinued a year later.

The main features of the Rotel RD-955AX cassette deck are: 2 heads, electronic tape counter with 4 digits, automatic tape type selection with support for normal, chrome and metal tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Rotel RD-955AX cassette deck are generic digital peak reading meters. Full-logic transport controls used on the Rotel RD-955AX let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the Rotel RD-955AX provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original. To further maintain recording accuracy, the RD-955AX incorporates a switchable multiplex filter. When you record FM stereo broadcasts, the MPX filter of the RD-955AX can be swiched on to prevent the standard 19kHz FM pilot signal from interfering with the noise reduction system.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable. All main transport commands can be issued remotely with a wired remote control.
