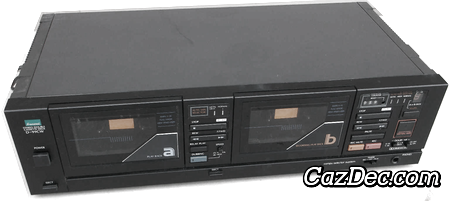

Sansui D-99CW
Dolby B NR Dolby C logo Full Logic Metal Tape

The Sansui D-99CW is a stereo double cassette deck with Dolby B and C noise reduction, it was introduced by Sansui in 1984 and discontinued 2 years later in 1986.

The main features of the Sansui D-99CW double cassette deck are: 2 heads, analog 3 digit tape counter, automatic tape type selection with support for normal, chrome and metal tapes, belt driven single-capstan transport.

Typical front loading double cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Full-logic transport controls used on the Sansui D-99CW let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the Sansui D-99CW provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

Compact Cassette
  • Full Logic
  • AMPS 1-15
  • Compu Selector System
  • Compu Edit
  • High Speed Copy

Historic events

1984 The first episode of the Miami Vice television crime drama series, premiered on NBC.
1985 Sony and Philips produced the standard for Compact Disc Read Only Memory (CD-ROM) computer discs that would use the same laser technology as the audio CD.
1986 IBM unveils the PC Convertible, the first laptop computer.

Features of Sansui D-99CW

Connectors
Connectivity
AC Power Cord / Plug RCA Input/Output Connectors Headphones
Display
Display
3-Digıt Mechanical Counter Digital 1-Digıt Peak-Reading Meter
Double Deck
Double Deck
Dual Deck Playback / Single Deck Record High Speed Dubbing Relay Playback
Cassette Exterior
Exterior
Silver Finish Orientation Left Black Finish Front Loading
Compact Cassette
General
Stereo
Head Configuration
Head Configuration
2 Head Desiǥn 4 Track / 2 Channel
Indicators
Indicators
Record Pause Record Mute Metal Tape Chrome Tape Normal Tape
Noise Resuction
Noise Reduction
Dolby-B Noise Reduction Dolby-C Noise Reduction
Controls
Operation
Full Logic Transport Control Timer Recording/Playback Record Mute
Power
Power Requirements
Alternating Current
Tape Speed
Speed
1⅞ ips - 4.76 cm/s
Tape
Tape
Automatic Tape Type Selection Metal Tape Capabilıty Normal Tape Capabilıty Chrome Tape Capabilıty
Transport
Transport
Auto Shutoff Mechanical Tape Loading Sìngle Capsŧan Transport Belt Drive (Capsŧan)
