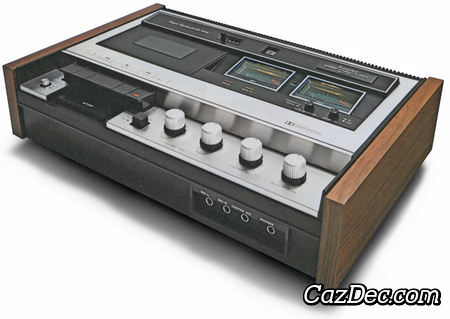

Sansui SC-737
Dolby B NR

This Sansui SC-737 is a stereo cassette deck with Dolby B noise reduction, it was first sold by Sansui in 1973 with a list price of USD $300 and discontinued 2 years later in 1975.

The main features of the Sansui SC-737 cassette deck are: 2 heads, mechanical 3 digit tape counter, manual tape type selection and capable of handling normal and chrome tapes, belt driven single-capstan transport.

Typical of this deck is the 70's top loading layout with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Sansui SC-737 cassette deck are analog needle VU reading meters with multi-color indication to provide visual saturation level of tape and peak indicator for easy adjustment of optimum recording level. Mechanical transport controls for reliable Sansui SC-737 transport function selection.

The Dolby-B system reduces tape hiss on tapes recorded on the Sansui SC-737 by as much as 10 dB at the highest frequencies.

To make live recordings this deck has 3 microphone inputs (for left, right and center channels) to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

Compact Cassette

Historic events

1973 Computer graphics are used for the first time in a Motion Picture Industry for the movie Westworld.
1974 Intel releases the 8080 processor, the 8-bit successor to the original 8008.
1975 Sony launched the Betamax videocassette recording format.

Features of Sansui SC-737

Connectors
Connectivity
Ground Terminal 3 Microphone Inputs RCA Input/Output Connectors DIN Input/Output Connector Headphones
Display
Display
3-Digıt Mechanical Counter Multi Color Peak-Reading Meters Analog Needle Meters
Cassette Exterior
Exterior
Silver Finish Orientation Left Wood Side Panels Top Loading Wood Case
Compact Cassette
General
Stereo
Head Configuration
Head Configuration
2 Head Desiǥn 4 Track / 2 Channel
Indicators
Indicators
Record Peak Indicator Dolby B Tape Run Indicator
Noise Resuction
Noise Reduction
Dolby-B Noise Reduction
Controls
Operation
Mechanical Transport Control
Preamplifier
Preamplifier
Output-Level Control Microphone Level Adjust (Left/Right/Blend)
Tape Speed
Speed
1⅞ ips - 4.76 cm/s
Tape
Tape
Manual Tape Type Selection Normal Tape Capabilıty Chrome Tape Capabilıty
Transport
Transport
Auto Shutoff Mechanical Tape Loading Sìngle Capsŧan Transport Belt Drive (Capsŧan)
