Sony TC-3250SD Stereo Cassette-Corder

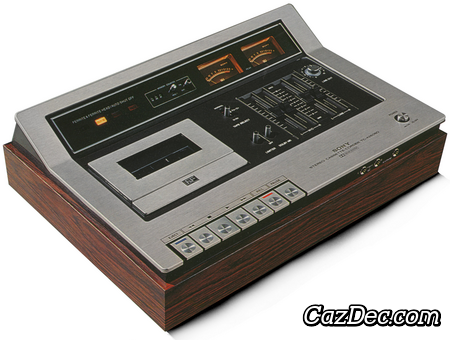

This product is missing a good quality picture. You can provide a picture taken by you from your own deck, or send us scanned picture of this deck taken from the original manufacturer brochure by clicking this text.
This Sony TC-3250SD is a stereo cassette deck with Dolby B noise reduction, it was first sold by Sony in 1974.
The main features of the Sony TC-3250SD cassette deck are: 2 heads, manual tape type selection and capable of handling normal, chrome and ferro-chrome tapes, belt driven single-capstan transport.
Typical of this deck is the 70's top loading layout with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.
Level meters used on the Sony TC-3250SD cassette deck are analog needle VU reading meters. Mechanical transport controls for reliable Sony TC-3250SD transport function selection.
The Dolby-B system reduces tape hiss on tapes recorded on the Sony TC-3250SD by as much as 10 dB at the highest frequencies.
To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied.
- Ferrite & Ferrite Head
- Auto Shut Off
- Servo Control
Historic events
Features of Sony TC-3250SD
2 Mono Microphone Inputs
Headphones
Analog Needle Meters
Peak Limiter
Orientation Left
Top Loading
Wood Case
Stereo
2 Head Desiǥn
4 Track / 2 Channel
Dolby-B Noise Reduction
Mechanical Transport Control
Microphone Level Adjust (Left/Right)
Individual Input Level Controls
Output-Level Control
1⅞ ips - 4.76 cm/s
Normal Tape Capabilıty
Manual Tape Type Selection
Ferro-Chrome Tape Capabilıty
Chrome Tape Capabilıty
Sìngle Capsŧan Transport
Belt Drive (Capsŧan)
Mechanical Tape Loading
Auto Stop
