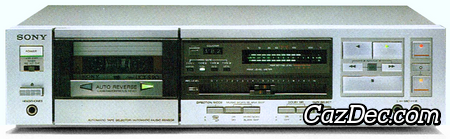

Sony TC-FX505R Stereo Cassette Deck

The Sony TC-FX505R is a auto-reverse stereo cassette deck with Dolby B and C noise reduction, it was introduced by Sony in 1984.

The main features of the Sony TC-FX505R cassette deck are: 2 heads, analog 3 digit tape counter, manual tape type selection with support for normal, chrome, ferro-chrome and metal tapes (automatic for chrome and metal tapes), belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Sony TC-FX505R cassette deck are generic digital peak reading meters. Full-logic transport controls used on the Sony TC-FX505R let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the Sony TC-FX505R provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable. All main transport commands can be issued remotely with a wired remote control.
