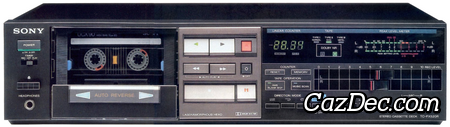

Sony TC-FX520R Stereo Cassette Deck

The Sony TC-FX520R is a auto-reverse stereo cassette deck with Dolby B and C noise reduction, it was introduced by Sony in 1986.

The main features of the Sony TC-FX520R cassette deck are: 2 heads, electronic linear tape counter with 4 digits and memory stop, automatic tape type selection with support for normal, chrome and metal tapes, belt driven auto reverse transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Sony TC-FX520R cassette deck are generic digital peak reading meters. Full-logic transport controls used on the Sony TC-FX520R let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the Sony TC-FX520R provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable. All main transport commands can be issued remotely with a wired remote control.

• AMS (Automatic Music Sensor)
• Auto Reverse
• Peak Level Meter
• Linear Counter
• Laseramorphous Head
