Sony TC-U5
Dolby B NR

The Sony TC-U5 is a stereo cassette deck with Dolby B noise reduction, it was introduced by Sony in 1979 and discontinued a year later.

The main features of the Sony TC-U5 cassette deck are: 2 heads, analog 3 digit tape counter, manual tape type selection with support for normal, chrome and ferro-chrome tapes with additional manual equalization selection, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well which is opened by a damped mechanism. Additionally the compartement can be accessed easly for head cleaning by removing the well-cover.

Level meters used on the Sony TC-U5 cassette deck are analog needle VU reading meters. Mechanical transport controls for reliable Sony TC-U5 transport function selection.

The Dolby-B system reduces tape hiss on tapes recorded on the Sony TC-U5 by as much as 10 dB at the highest frequencies.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

Compact Cassette
  • AMS (Automatic Music Sensor)
  • Ferrite & Ferrite Head

Historic events

1979 Philips introduced the Video 2000-system (also known as 'Video Compact Cassette' or VCC)
1980 Dolby C Noise Reduction introduced by Dolby Laboratories.

Features of Sony TC-U5

Connectors
Connectivity
2 Mono Microphone Inputs AC Power Cord / Plug RCA Input/Output Connectors Headphones
Display
Display
Track Indicator 3-Digıt Mechanical Counter Analog Needle Meters
Cassette Exterior
Exterior
Silver Finish Orientation Left Front Loading
Compact Cassette
General
Stereo
Head Configuration
Head Configuration
2 Head Desiǥn 4 Track / 2 Channel
Indicators
Indicators
Record
Noise Resuction
Noise Reduction
Dolby-B Noise Reduction
Controls
Operation
Music Scan Mechanical Transport Control Removable Well Cover Damped Eject
Power
Power Requirements
Alternating Current
Preamplifier
Preamplifier
Individual Input Level Controls
Tape Speed
Speed
1⅞ ips - 4.76 cm/s
Tape
Tape
Manual Tape Type Selection Ferro-Chrome Tape Capabilıty Normal Tape Capabilıty Manual Tape Equalization Chrome Tape Capabilıty
Transport
Transport
Servo Controlled Transport Auto Shutoff 1x Motor Mechanism Mechanical Tape Loading Sìngle Capsŧan Transport Belt Drive (Capsŧan)

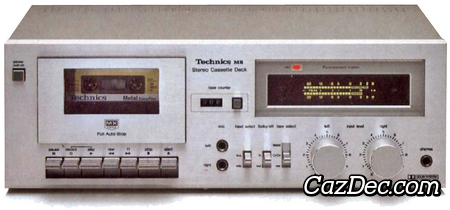

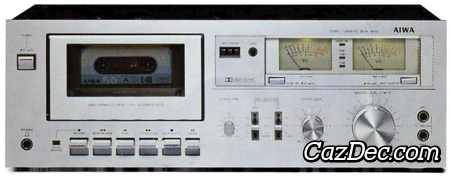

Similar to Sony TC-U5 from the period 1979 - 1980
