Dolby B NR Dolby C logo Dolby S Dolby HXPro Auto Reverse Metal Tape Full Logic

The Sony TC-WR735S is a auto-reverse stereo double cassette deck with Dolby B/C/S and HX-Pro noise reduction, it was introduced by Sony in 1993.

The main features of the Sony TC-WR735S double cassette deck are: 2 heads, tape type selection with support for normal, chrome and metal tapes, auto reverse transport.

Typical front loading double cassette deck with the cassette compartiment located on both sides of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Full-logic transport controls used on the Sony TC-WR735S let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby S-type noise reduction gives cleaner transient response, provides lower noise levels, both at low and high frequencies, and allows higher signal levels to be recorded safely on the Sony TC-WR735S. Dolby S-type noise reduction provides 24 dB of high frequency noise reduction plus an additional 10 dB of low frequency noise reduction. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original.

Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

Compact Cassette

Historic events

1993 Intel introduces the "Pentium" processing chip.

Features of Sony TC-WR735S

Connectors
Connectivity
AC Power Cord / Plug RCA Input/Output Connectors
Cassette Exterior
Exterior
Black Finish Orientation Left / Right Front Loading
Compact Cassette
General
Stereo
Head Configuration
Head Configuration
4 Track / 2 Channel 2 Head Desiǥn
Noise Resuction
Noise Reduction
Dolby-B Noise Reduction Dolby-C Noise Reduction Dolby-S Noise Reduction Dolby HX Pro®
Controls
Operation
Full Logic Transport Control
Power
Power Requirements
Alternating Current
Tape Speed
Speed
1⅞ ips - 4.76 cm/s
Tape
Tape
Normal Tape Capabilıty Chrome Tape Capabilıty Metal Tape Capabilıty
Transport
Transport
Mechanical Tape Loading Single Capsŧan Transport (x2) Auto Reverse

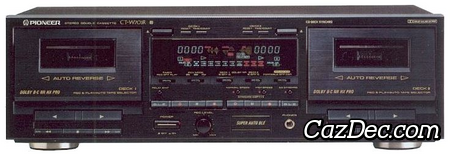

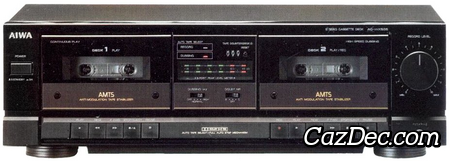

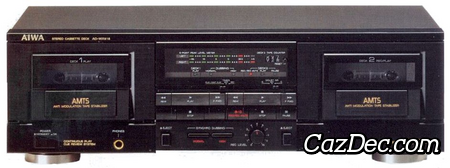

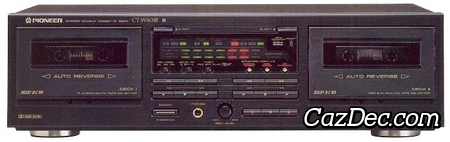

Similar to Sony TC-WR735S from the period 1993
