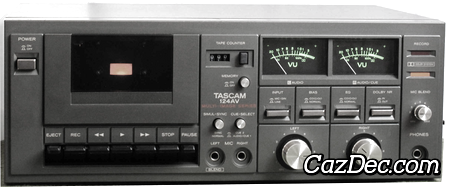

Tascam 124AV Cassette Deck
The Tascam 124AV is a stereo cassette deck with Dolby B noise reduction, it was introduced by Tascam in 1979.
The main features of the Tascam 124AV cassette deck are: 2 heads, analog 3 digit tape counter and memory stop, manual tape type selection with support for normal and chrome tapes with additional manual equalization selection, belt driven single-capstan transport.
Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.
Level meters used on the Tascam 124AV cassette deck are analog needle VU reading meters. Mechanical transport controls for reliable Tascam 124AV transport function selection.
The Dolby-B system reduces tape hiss on tapes recorded on the Tascam 124AV by as much as 10 dB at the highest frequencies.
To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied.
- Syncaset
Historic events
Features of Tascam 124AV
2 Mono Microphone Inputs
Headphones
3-Digıt Mechanical Counter
Analog Needle Meters
Orientation Left
Black Finish
Front Loading
Stereo
Single Channel Recording
2 Head Desiǥn
4 Track / 2 Channel
Record
Dolby B
Cassette Back Lighting
Dolby-B Noise Reduction
Line / Mic Input Select
Memory Stop
Mechanical Transport Control
Alternating Current
Individual Input Level Controls
Mix Line + Microphone Signals
1⅞ ips - 4.76 cm/s
Manual Tape Type Selection
Normal Tape Capabilıty
Manual Tape Equalization
Chrome Tape Capabilıty
Auto Shutoff
Mechanical Tape Loading
Sìngle Capsŧan Transport
Belt Drive (Capsŧan)
Similar to Tascam 124AV from the period 1979
