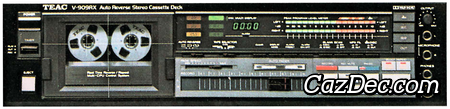

TEAC V-909RX Auto Reverse Stereo Cassette Deck

This TEAC V-909RX is a auto-reverse stereo cassette deck with Dolby B and C and DBX noise reduction, it was first sold by TEAC in 1983 with a recommended retail price of USD $650.

The main features of the TEAC V-909RX cassette deck are: 3 heads and no off-tape monitoring to save production cost, digital tape counter with 4 digits, tape type selection and capable of handling normal, chrome and metal tapes, belt driven auto reverse transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the TEAC V-909RX cassette deck are generic digital peak reading meters. Full-logic transport controls used on the TEAC V-909RX let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the TEAC V-909RX provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. Dbx Type II found in the V-909RX is a simplified version of the Type I noise reduction system. The dbx Type II system was designed to be used with systems with limited bandwidth such as cassette based recorders and also uses a simple 2:1:2 compander to reduce noise.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
