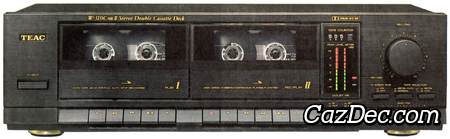

TEAC W-310C MKII Stereo Double Cassette Deck
The TEAC W-310C MKII is a stereo double cassette deck with Dolby B and C noise reduction.
The main features of the TEAC W-310C MKII double cassette deck are: 2 heads, analog 3 digit tape counter, manual tape type selection with support for normal, chrome and metal tapes, belt driven single-capstan transport.
Typical front loading double cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.
Level meters used on the TEAC W-310C MKII double cassette deck are generic digital peak reading meters. Soft-touch controls for fast and easy transport function selection of the TEAC W-310C MKII double cassette deck.
Dolby C-type used in the TEAC W-310C MKII provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type.
Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
- Auto Tape Selector
- Full Auto Stop Mechanism
- High Speed Dubbing
Features of TEAC W-310C MKII
Bias Fine Tune
AC Power Cord / Plug
RCA Input/Output Connectors
DIN Input/Output Connector
3-Digıt Mechanical Counter
Digital Peak-Reading Meters
Dual Deck Playback / Single Deck Record
High Speed Dubbing
Orientation Left
Black Finish
Front Loading
Stereo
2 Head Desiǥn
4 Track / 2 Channel
Record
Dolby-B Noise Reduction
Dolby-C Noise Reduction
Soft Touch Transport Control
Alternating Current
Master Record Level Control
1⅞ ips - 4.76 cm/s
Manual Tape Type Selection
Automatic Tape Type Selection
Normal Tape Capabilıty
Chrome Tape Capabilıty
Metal Tape Capabilıty
Auto Shutoff
Mechanical Tape Loading
1x2 Motor Mechanism
Sìngle Capsŧan Transport
Belt Drive (Capsŧan)
Similar to TEAC W-310C MKII from the period after 1962(1984)
