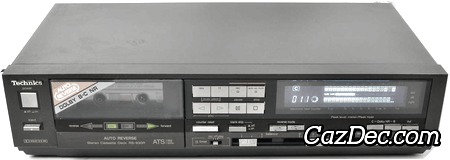

Technics RS-930R
Dolby B NR Dolby C logo Auto Reverse Metal Tape Full Logic

The Technics RS-930R is a auto-reverse stereo cassette deck with Dolby B and C noise reduction, it was introduced by Technics in 1985.

The main features of the Technics RS-930R cassette deck are: 2 heads, electronic tape counter with 3 digits, automatic tape type selection with support for normal, chrome and metal tapes, belt driven auto reverse transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Technics RS-930R cassette deck are generic digital peak reading meters with peak hold for easy adjustment of optimum recording level. Full-logic transport controls used on the Technics RS-930R let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the Technics RS-930R provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

Compact Cassette
  • Auto Reverse
  • Peak Hold
  • ATS (Auto Tape Select)
  • Peak Level Meter

Historic events

1985 Sony and Philips produced the standard for Compact Disc Read Only Memory (CD-ROM) computer discs that would use the same laser technology as the audio CD.

Features of Technics RS-930R

Connectors
Connectivity
2 Mono Microphone Inputs AC Power Connector (2-Pin) RCA Input/Output Connectors Headphones
Controls
Controls
2-Position Direction Selector
Display
Display
3-Digıt Digital Counter Multi Function Display Digital Peak-Reading Meters Peak Hold
Electronics
Electronics
Record Protection
Cassette Exterior
Exterior
Orientation Left Black Finish Front Loading
Compact Cassette
General
Stereo
Head Configuration
Head Configuration
4 Track / 2 Channel 2 Head Desiǥn
Indicators
Indicators
Auto Reverse Direction Play Record
Noise Resuction
Noise Reduction
Dolby-B Noise Reduction Dolby-C Noise Reduction
Controls
Operation
Full Logic Transport Control Blank Skip Record Mute Timer Recording/Playback Music Scan
Power
Power Requirements
Alternating Current
Preamplifier
Preamplifier
Record Level Balance Control Master Record Level Control
Tape Speed
Speed
1⅞ ips - 4.76 cm/s
Tape
Tape
Automatic Tape Type Selection Metal Tape Capabilıty Normal Tape Capabilıty Chrome Tape Capabilıty
Transport
Transport
Auto Reverse Auto Shutoff Mechanical Tape Loading Single Capsŧan Transport (x2) Well Loading Belt Drive (Capsŧan)

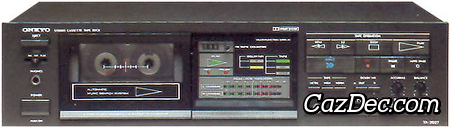

Similar to Technics RS-930R from the period 1985
