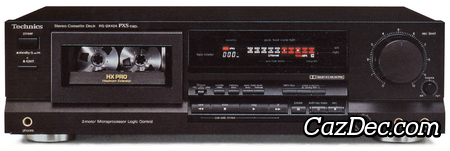

Technics RS-BX404 Stereo Cassette Deck

This Technics RS-BX404 is a stereo cassette deck with Dolby B/C and HX-Pro noise reduction, it was first sold by Technics in 1991 with a recommended retail price of USD $270 and discontinued 2 years later in 1993.

The main features of the Technics RS-BX404 cassette deck are: 2 heads, digital linear tape counter with 3 digits and memory stop, automatic tape type selection and capable of handling normal, chrome and metal tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Full-logic transport controls used on the Technics RS-BX404 let it respond to the slightest finger contact for fast and effortless transport function selection. Cue and review can be used to easily and quickly locate the beginning of a passage.

Dolby C-type used in the Technics RS-BX404 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the RS-BX404 filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
