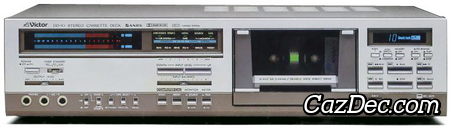

Victor DD-10 Stereo Cassette Deck

This Victor DD-10 is a stereo cassette deck with Dolby B and C and JVC's ANRS and Super ANRS noise reduction, it was first sold by Victor in 1981.

The main features of the Victor DD-10 cassette deck are: 3 heads and off-tape monitoring, digital tape counter with 4 digits, manual tape type selection and capable of handling normal, chrome and metal tapes, single capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the right side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Victor DD-10 cassette deck are generic digital peak reading meters with multi-color indication to provide visual saturation level of tape and peak hold for easy adjustment of optimum recording level. Full-logic transport controls used on the Victor DD-10 let it respond to the slightest finger contact for fast and effortless transport function selection.

To ensure the best response from the wide variety of tapes available adjustment of, bias, equalization and sensitivity, to optimum levels can be performed prior to recording.

Super ANRS developed by JVC and used in the DD-10 applies compression in recording and expansion in playback to improve dynamic range at high frequencies. Also Super ANRS is a highly effective noise reduction system that reduces tape hiss by boosting the signal-to-noise ratio as much as 10db over 5000Hz. Dolby C-type used in the Victor DD-10 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the DD-10 filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable. All main transport commands can be issued remotely with a wired remote control.

• BES Tuning System (Bias Equalization Sensitivity)
• X-Cut SA 3-Head
