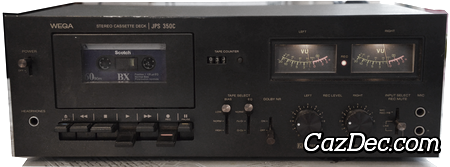

WEGA JPS 350C
Dolby B NR

This Wega JPS 350C is a stereo cassette deck with Dolby B noise reduction, it was first sold by Wega in 1979 and discontinued a year later.

The main features of the Wega JPS 350C cassette deck are: 2 heads, mechanical 3 digit tape counter, manual tape type selection and capable of handling normal, chrome and ferro-chrome tapes with additional manual equalization selection, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Wega JPS 350C cassette deck are analog needle VU reading meters. Mechanical transport controls for reliable Wega JPS 350C transport function selection.

The Dolby-B system reduces tape hiss on tapes recorded on the Wega JPS 350C by as much as 10 dB at the highest frequencies.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

Compact Cassette
  • Auto Shut Off
  • Ferrite & Ferrite Head

Historic events

1979 Philips introduced the Video 2000-system (also known as 'Video Compact Cassette' or VCC)
1980 Dolby C Noise Reduction introduced by Dolby Laboratories.

Features of Wega JPS 350C

Connectors
Connectivity
2 Mono Microphone Inputs AC Power Connector (IEC) RCA Input/Output Connectors DIN Input/Output Connector Headphones
Display
Display
3-Digıt Mechanical Counter Analog Needle Meters
Cassette Exterior
Exterior
Orientation Left Black Finish Front Loading
Compact Cassette
General
Stereo
Head Configuration
Head Configuration
2 Head Desiǥn 4 Track / 2 Channel
Noise Resuction
Noise Reduction
Dolby-B Noise Reduction
Controls
Operation
Line / Mic Input Select Record Mute Mechanical Transport Control
Power
Power Requirements
Alternating Current
Preamplifier
Preamplifier
Individual Input Level Controls
Tape Speed
Speed
1⅞ ips - 4.76 cm/s
Tape
Tape
Manual Tape Type Selection Ferro-Chrome Tape Capabilıty Normal Tape Capabilıty Manual Tape Equalization Chrome Tape Capabilıty
Transport
Transport
Mechanical Tape Loading Auto Stop Sìngle Capsŧan Transport Belt Drive (Capsŧan)
