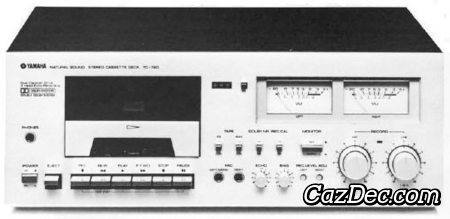

Yamaha TC-720 Natural Sound Stereo Cassette Deck

This Yamaha TC-720 is a stereo cassette deck with double Dolby B noise reduction, it was first sold by Yamaha in 1978 with a manufacturer suggested retail price of USD $450 and discontinued 2 years later in 1980.

The main features of the Yamaha TC-720 cassette deck are: 3 heads and off-tape monitoring, mechanical 3 digit tape counter, manual tape type selection and capable of handling normal, chrome and ferro-chrome tapes with additional manual equalization selection, belt driven dual-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Yamaha TC-720 cassette deck are analog needle VU reading meters. Mechanical transport controls for reliable Yamaha TC-720 transport function selection.

To ensure the best response from the wide variety of tapes available adjustment of, sensitivity, to optimum levels can be performed prior to recording.

The Dolby-B system reduces tape hiss on tapes recorded on the Yamaha TC-720 by as much as 10 dB at the highest frequencies. The three-head configuration of the Yamaha TC-720 requires a Double Dolby system, one for recording and one for playback.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
