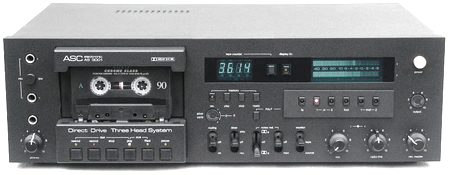

ASC AS 3001 Cassette Deck

The ASC AS 3001 is a stereo cassette deck with Dolby B and C noise reduction, it was introduced by ASC in 1982 and discontinued 5 years later in 1987.

The main features of the ASC AS 3001 cassette deck are: 3 heads and off-tape monitoring, electronic tape counter with 4 digits and memory stop, tape type selection with support for normal, chrome, ferro-chrome and metal tapes, dual capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed directly over the head block. Additionally the heads can be easilly accessed for cleaning.

Level meters used on the ASC AS 3001 cassette deck are generic digital peak reading meters. Full-logic transport controls used on the ASC AS 3001 let it respond to the slightest finger contact for fast and effortless transport function selection. Playback speed may be adjusted with pitch control. Cue and review can be used to easily and quickly locate the beginning of a passage.

To ensure the best response from the wide variety of tapes available adjustment of, bias and sensitivity, to optimum levels can be performed prior to recording.

Dolby C-type used in the ASC AS 3001 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. To further maintain recording accuracy, the AS 3001 incorporates a switchable multiplex filter. When you record FM stereo broadcasts, the MPX filter of the AS 3001 can be swiched on to prevent the standard 19kHz FM pilot signal from interfering with the noise reduction system.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable. All main transport commands can be issued remotely with a wired remote control.

Three Head System
Direct Drive
