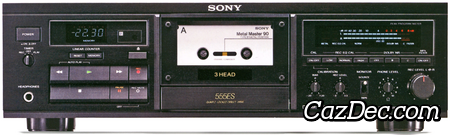

Sony TC-K555ESX Stereo Cassette Deck

This Sony TC-K555ESX is a stereo cassette deck with Dolby B and C noise reduction, it was first sold by Sony in 1987 with a list price of USD $1,000.

The main features of the Sony TC-K555ESX cassette deck are: 3 heads and off-tape monitoring, digital linear tape counter with 4 digits and memory stop, automatic tape type selection and capable of handling normal, chrome and metal tapes, dual capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the center of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Sony TC-K555ESX cassette deck are generic digital peak reading meters. Full-logic transport controls used on the Sony TC-K555ESX let it respond to the slightest finger contact for fast and effortless transport function selection.

To ensure the best response from the wide variety of tapes available adjustment of, bias and sensitivity, to optimum levels can be performed prior to recording.

Dolby C-type used in the Sony TC-K555ESX provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the TC-K555ESX filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. All main transport commands can be issued remotely with a wireless remote control.
