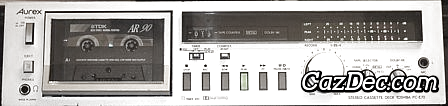

Aurex PC-E70 Stereo Cassette Deck

The Aurex PC-E70 is a stereo cassette deck with Dolby B noise reduction, it was introduced by Aurex in 1980 and discontinued 2 years later in 1982.

The main features of the Aurex PC-E70 cassette deck are: 2 heads, analog 3 digit tape counter, manual tape type selection with support for normal, chrome, ferro-chrome and metal tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Aurex PC-E70 cassette deck are generic digital peak reading meters with multi-color indication to provide visual saturation level of tape.

The Dolby-B system reduces tape hiss on tapes recorded on the Aurex PC-E70 by as much as 10 dB at the highest frequencies. To further maintain recording accuracy, the PC-E70 incorporates a switchable multiplex filter. When you record FM stereo broadcasts, the MPX filter of the PC-E70 can be swiched on to prevent the standard 19kHz FM pilot signal from interfering with the noise reduction system.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable. All main transport commands can be issued remotely with a wired remote control.
