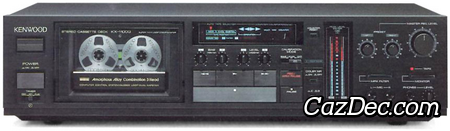

Kenwood KX-1100G Stereo Cassette Deck

This Kenwood KX-1100G is a stereo cassette deck with double Dolby B and C noise reduction, it was first sold by Kenwood in 1985.

The main features of the Kenwood KX-1100G cassette deck are: 3 heads and off-tape monitoring, digital tape counter with 4 digits, automatic tape type selection and capable of handling normal, chrome and metal tapes, dual capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Kenwood KX-1100G cassette deck are generic digital peak reading meters with peak hold for easy adjustment of optimum recording level. Full-logic transport controls used on the Kenwood KX-1100G let it respond to the slightest finger contact for fast and effortless transport function selection.

To ensure the best response from the wide variety of tapes available adjustment of, bias and sensitivity, to optimum levels can be performed prior to recording.

Dolby C-type used in the Kenwood KX-1100G provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The three-head configuration of the Kenwood KX-1100G requires a Double Dolby system, one for recording and one for playback. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the KX-1100G filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

• Amorphous Alloy Combination 3 Head
• Closed Loop Dual Capstan
• Computer Control System
• Super TLLE (Super Twin Loop Linear Exciter )
