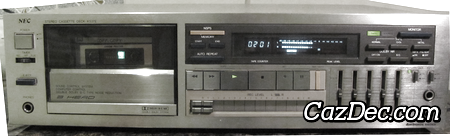

NEC K-537E Stereo Cassette Deck

This NEC K-537E is a stereo cassette deck with double Dolby B and C noise reduction, it was first sold by NEC in 1987.

The main features of the NEC K-537E cassette deck are: 3 heads and off-tape monitoring, digital tape counter with 4 digits, manual tape type selection and capable of handling normal, chrome and metal tapes.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the NEC K-537E cassette deck are generic digital peak reading meters. Full-logic transport controls used on the NEC K-537E let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the NEC K-537E provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The three-head configuration of the NEC K-537E requires a Double Dolby system, one for recording and one for playback. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the K-537E filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.
