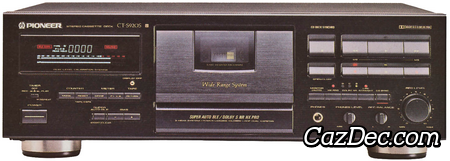

Pioneer CT-S920S Stereo Cassette Deck

This Pioneer CT-S920S is a stereo cassette deck with Dolby B/C/S and HX-Pro noise reduction, it was first sold by Pioneer in 1993 with a list price of USD $850.

The main features of the Pioneer CT-S920S cassette deck are: 3 heads and off-tape monitoring, digital linear tape counter with 4 digits, automatic tape type selection and capable of handling normal, chrome and metal tapes, belt driven dual-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the center of the deck. Tape loading/unloading is operated motorized and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Pioneer CT-S920S cassette deck are generic digital peak reading meters with peak hold for easy adjustment of optimum recording level. Full-logic transport controls used on the Pioneer CT-S920S let it respond to the slightest finger contact for fast and effortless transport function selection.

To ensure the best response from the wide variety of tapes available adjustment of, bias, equalization and sensitivity, to optimum levels can be performed prior to recording.

Dolby S-type noise reduction gives cleaner transient response, provides lower noise levels, both at low and high frequencies, and allows higher signal levels to be recorded safely on the Pioneer CT-S920S. Dolby S-type noise reduction provides 24 dB of high frequency noise reduction plus an additional 10 dB of low frequency noise reduction. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the CT-S920S filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

• Slanted Mechanism
• Super Auto BLE
• Digital Tension Control
• Line Straight
• Reference Master Mechanism
• PC-OCC Amorphous Head
• Fine Grain Capstan Bearing
• Direct Connection (Short signal path)
• Centre Mount Design
• ATLC (Automatic Tape Loose Canceler)
• PLCS (Peak Level Calibration System)
