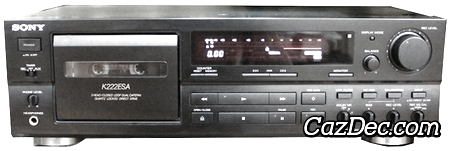

Sony TC-K222ESA Stereo Cassette Deck

The Sony TC-K222ESA is a stereo cassette deck with Dolby B/C and HX-Pro noise reduction, it was introduced by Sony in 1991.

The main features of the Sony TC-K222ESA cassette deck are: 3 heads and off-tape monitoring, electronic linear tape counter with 4 digits, automatic tape type selection with support for normal, chrome and metal tapes, dual capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape loading/unloading is operated motorized and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Level meters used on the Sony TC-K222ESA cassette deck are generic digital peak reading meters with peak hold for easy adjustment of optimum recording level. Full-logic transport controls used on the Sony TC-K222ESA let it respond to the slightest finger contact for fast and effortless transport function selection.

To ensure the best response from the wide variety of tapes available adjustment of, bias and sensitivity, to optimum levels can be performed prior to recording.

Dolby C-type used in the Sony TC-K222ESA provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original. To further maintain recording accuracy, the TC-K222ESA incorporates a switchable multiplex filter. When you record FM stereo broadcasts, the MPX filter of the TC-K222ESA can be swiched on to prevent the standard 19kHz FM pilot signal from interfering with the noise reduction system.

For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable. All main transport commands can be issued remotely with a wireless remote control.

• AMS (Automatic Music Sensor)
• Closed Loop Dual Capstan
• Quartz Locked Direct Drive
• ES (Elevated Standard)
• 3 Head
• Japanese Market
