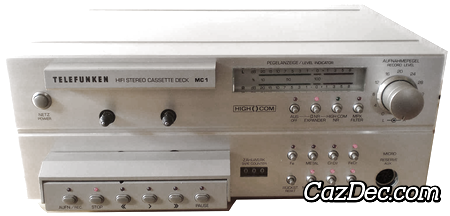

Telefunken MC 1 HIFI Stereo Cassette Deck

This Telefunken MC 1 is a stereo cassette deck with High-Com noise reduction, it was first sold by Telefunken in 1981.

The main features of the Telefunken MC 1 cassette deck are: 2 heads, mechanical 3 digit tape counter and memory stop, tape type selection and capable of handling normal, chrome, ferro-chrome and metal tapes, belt driven single-capstan transport.

Typical front loading cassette deck with the cassette compartiment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed directly over the head block. Additionally the heads can be easilly accessed for cleaning.

Level meters used on the Telefunken MC 1 cassette deck are generic digital peak reading meters. Full-logic transport controls used on the Telefunken MC 1 let it respond to the slightest finger contact for fast and effortless transport function selection.

The High Com system (as used in the Telefunken MC 1) works as a broadband 2:1:2 compander, achieving almost 15 dB of noise reduction for low and up to 20 dB for higher frequencies, while avoiding most of the acoustic problems observed with other high compression broadband companders. The 19kHz multiplex pilot slgnal present in FM stereo broadcasts can cause false triggering of the noise reduction system. The switchable MPX filter of the MC 1 filters out the pilot signal, and assuring proper Dolby processing of FM stereo programs.

To make live recordings this deck has 2 microphone inputs to connect a microphone with a DIN connector. Connection to other audio components for plaback can be achieved by a cable and recording from a source by a cable.
